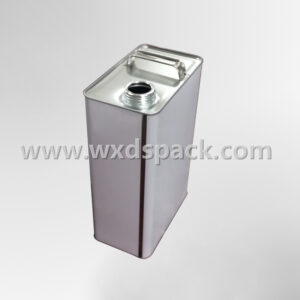

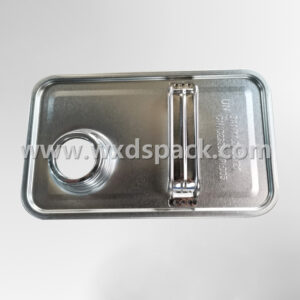

5L Motor Oil Can with Customized Screw Cap

Our other small F style square tin cans.

Capacity (L)	L (mm)	W (mm)	H (mm)	Thickness (mm)
1L	117	60	185	0.23-0.28
Half Gallon	168	105	130	0.23-0.28
2L	177	120	144	0.23-0.28
2.2L	168	88	170	0.23-0.28
2.5L	168	105	170	0.23-0.28
	180	105	160	0.23-0.28
3L	166	87	215	0.23-0.28
	168	105	200	0.23-0.28
	180	105	190	0.23-0.28
1 Gallon	168	105	240	0.23-0.28
	180	105	230	0.23-0.28
4L	168	105	260	0.23-0.28
	180	105	250	0.23-0.28
5L	180	105	270	0.23-0.28

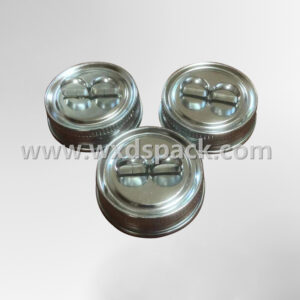

Caps	Japan metal squeeze cap with plastic spout (42mm), Metal screw cap (28mm, 32mm, 42mm, 56mm), Plastic telescopic spout cap (28mm,32mm, 42mm,56mm), Plastic screw cap (Rieke cap) etc.
Handles	Plastic handle, Metal wide fixed handle (Japan style), Metal wide fixed handle (Europe style), Metal folded handle

We We can adjust the HEIGHT to be customer's capacity without making a new mold.

Other tin containers
1) GENERAL ROUND CANS: 0.37L / 0.8L / 1L / 2L / 1 gallon / 4L / 5L / 10L
2) GENERAL CONICAL BUCKETS: 10L / 15L / 18L / 5 gallon / 20L /25L
3) GENERAL SQUARE CANS: 1L / 2L / 2.5L / 3L / 4L / 5L / 10L / 5 gallon
4) LIDS / CAPS / COVERS: flower edge lid, curly edge lid, lid with lever lock ring, plastic stretch cap and metal screw cap etc.
