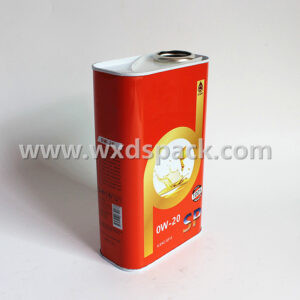

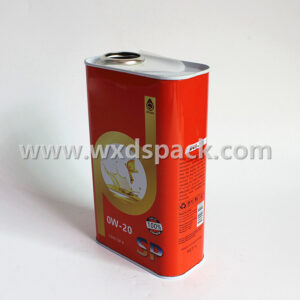

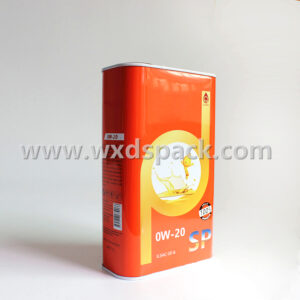

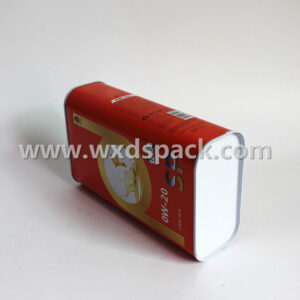

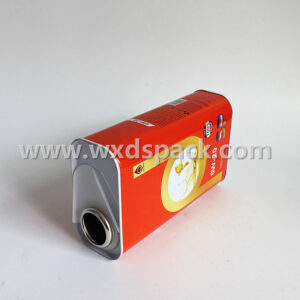

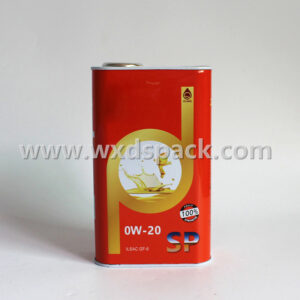

Our Existing F-style Small Tins
Capacity (L) | L (mm) | W (mm) | H (mm) | Thickness (mm) |
1L | 117 | 60 | 185 | 0.23-0.28 |
Half Gallon | 168 | 105 | 130 | 0.23-0.28 |
2L | 177 | 120 | 144 | 0.23-0.28 |
2.2L | 168 | 88 | 170 | 0.23-0.28 |
2.5L | 168 | 105 | 170 | 0.23-0.28 |
180 | 105 | 160 | 0.23-0.28 | |
3L | 166 | 87 | 215 | 0.23-0.28 |
168 | 105 | 200 | 0.23-0.28 | |
180 | 105 | 190 | 0.23-0.28 | |
1 Gallon | 168 | 105 | 240 | 0.23-0.28 |
180 | 105 | 230 | 0.23-0.28 | |
4L | 168 | 105 | 260 | 0.23-0.28 |
180 | 105 | 250 | 0.23-0.28 | |
5L | 180 | 105 | 270 | 0.23-0.28 |
Caps | Japan metal squeeze cap with plastic spout (42mm), Metal screw cap (28mm, 32mm, 42mm, 56mm), Plastic telescopic spout cap (28mm,32mm, 42mm,56mm), Plastic screw cap (Rieke cap) etc. | |||
Handles | Plastic handle, Metal wide fixed handle (Japan style), Metal wide fixed handle (Europe style), Metal folded handle |
We can adjust the HEIGHT to be customer's capacity without making a new mold.
Other tin containers
1) GENERAL ROUND CANS: 0.37L / 0.8L / 1L / 2L / 1 gallon / 4L / 5L / 10L
2) GENERAL CONICAL BUCKETS: 10L / 15L / 18L / 5 gallon / 20L /25L
3) GENERAL SQUARE CANS: 1L / 2L / 2.5L / 3L / 4L / 5L / 10L / 5 gallon
4) LIDS / CAPS / COVERS: Japan metal squeeze cap with plastic spout (42mm), Metal screw cap (28mm, 32mm, 42mm, 56mm), Plastic telescopic spout cap (28mm, 32mm, 42mm, 56mm), Plastic screw cap (Rieke cap), Flower edge lid, Curly edge lid, Lever lock ring lid etc.
